• Age: 2007
• Max size: 520 x 750 mm
• Machine type: Laminating machines
• Condition: good
• Availability: at once

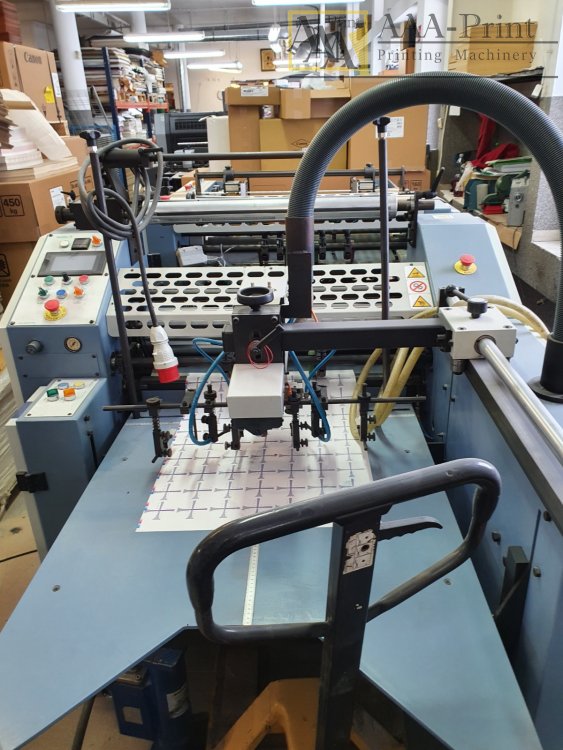

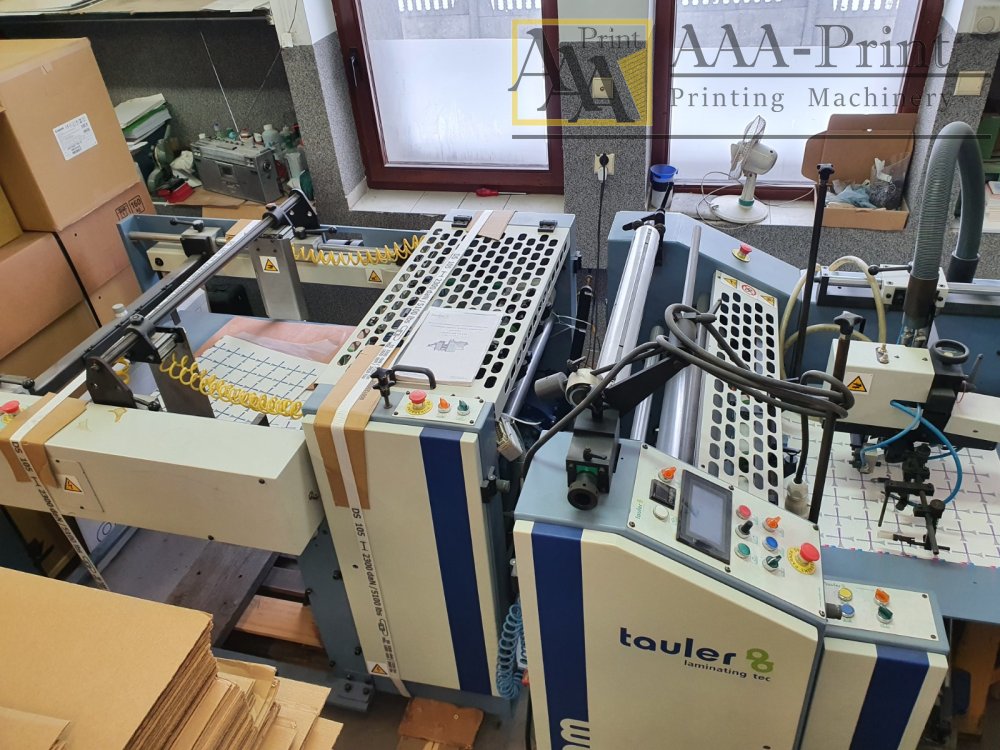

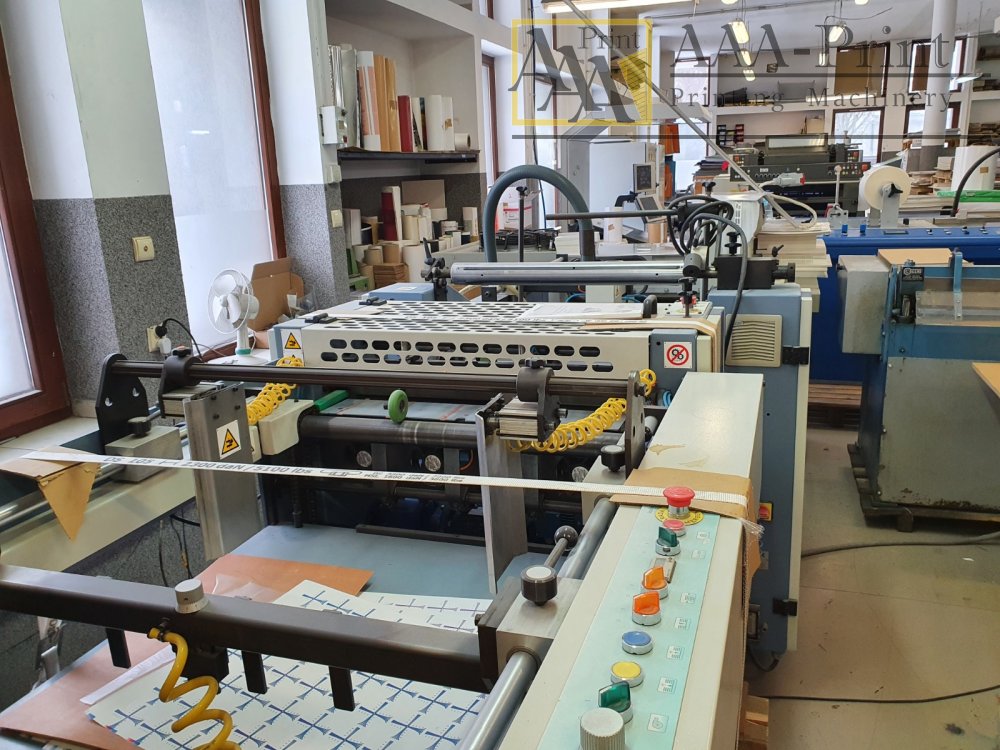

Automatic laminator Tauler PrintLam CTI 75 format B1 (750×1050 mm) from the Spanish company Tauler Maquinaria S.L.
It has a high quality of laminating layer application, even at maximum productivity.

Technical specifications:
max. sheet size 750×1050 mm;
min. sheet size 200 (190)×250 mm;
maxi. mechanical speed 30 m/min;
productivity up to 4,000 sheets/hour;
The material used is 110-600 g/m2;
self-loading slipway height 900 mm;
the height of the slipway on the laying is 530 mm;
installed capacity 9.2 kW;
voltage 3×380 V, 50 Hz;

Equipment:
automatic vacuum self-priming with pneumatic head;
control of the passage and double sheet;
sheet alignment, front stamps;
the function of stopping the machine (by photo sensor) in case there is no paper in the stack;
thermal calendering (hot lamination) using an oil-filled heating cylinder;
pneumatic pressure roller;
film mounting bracket;
trimming excess foil at the edges;
cutting roller and pressure wheel for easy separation of products;
boxed layout;
continuously adjustable machine speed using a frequency converter (inverter);
electronic PLC control.
It can be seen in production.

Price on request
