• Age: 2014
• Max size: B2
• Machine type: Various types of equipment
• Condition: good
• Availability: 04/2026

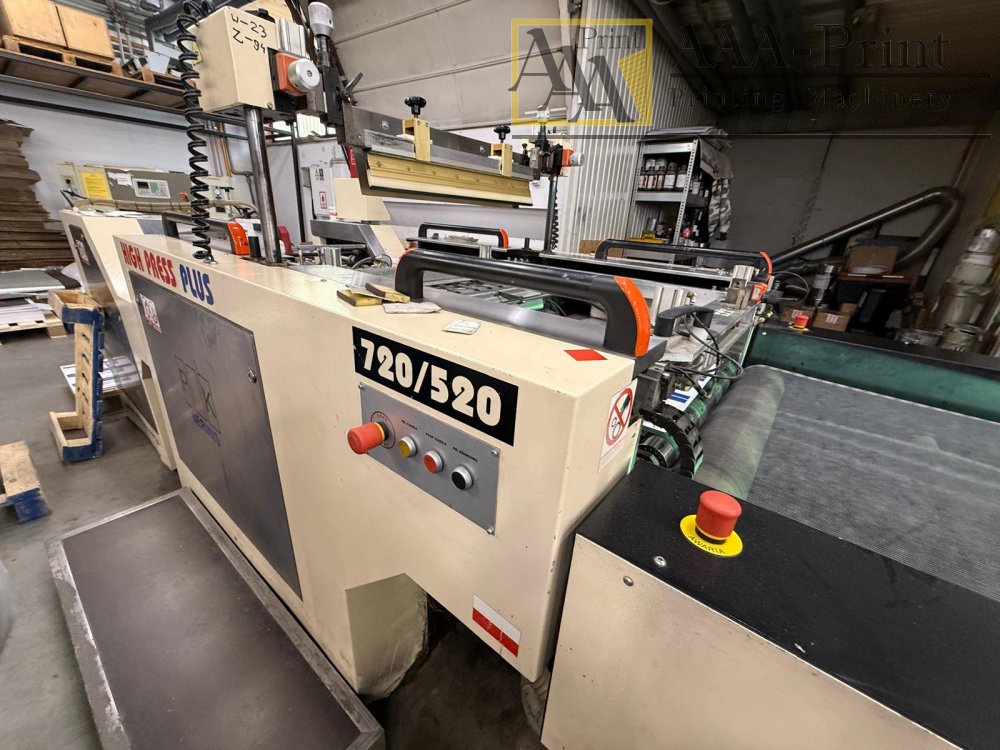

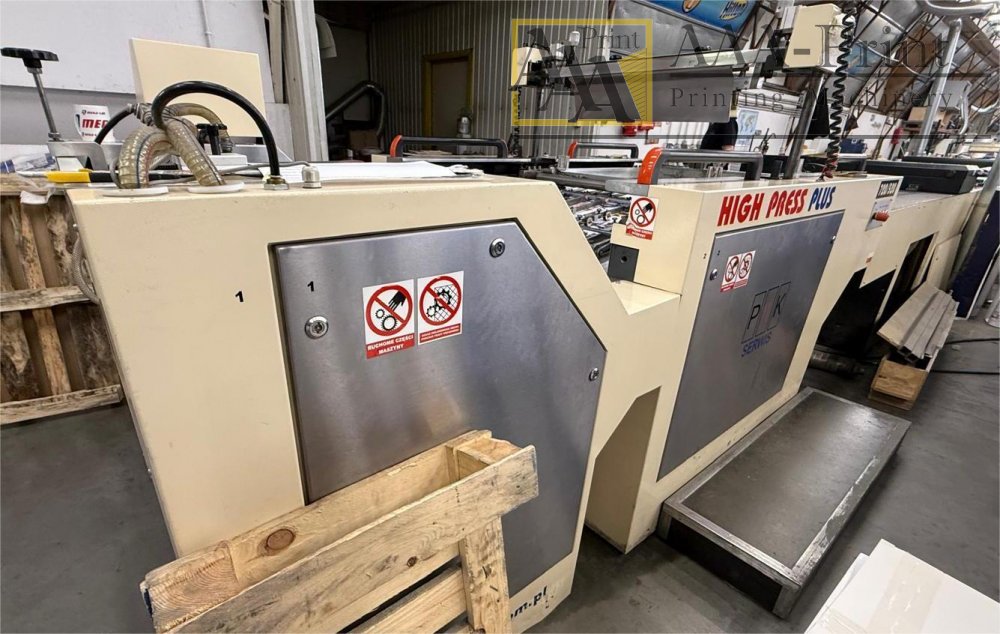

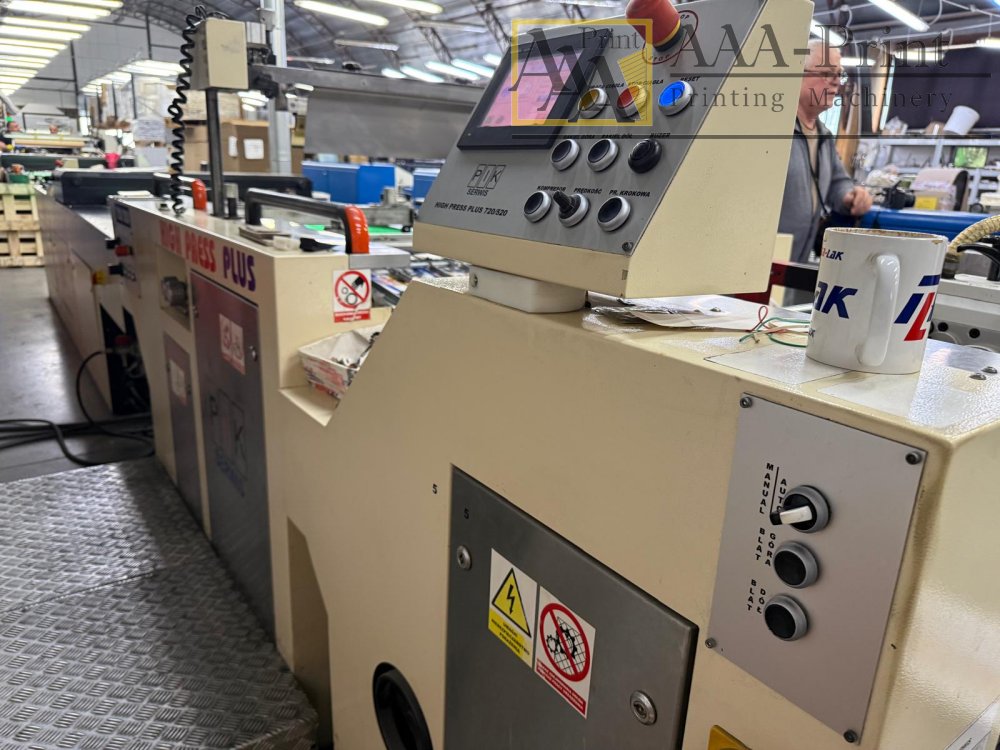

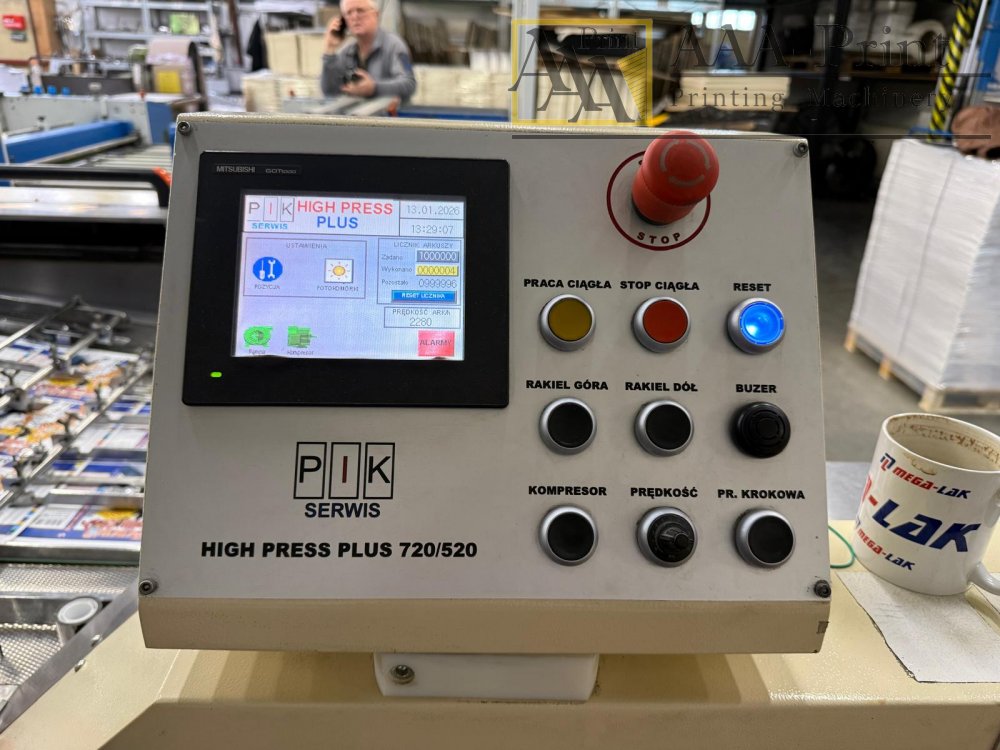

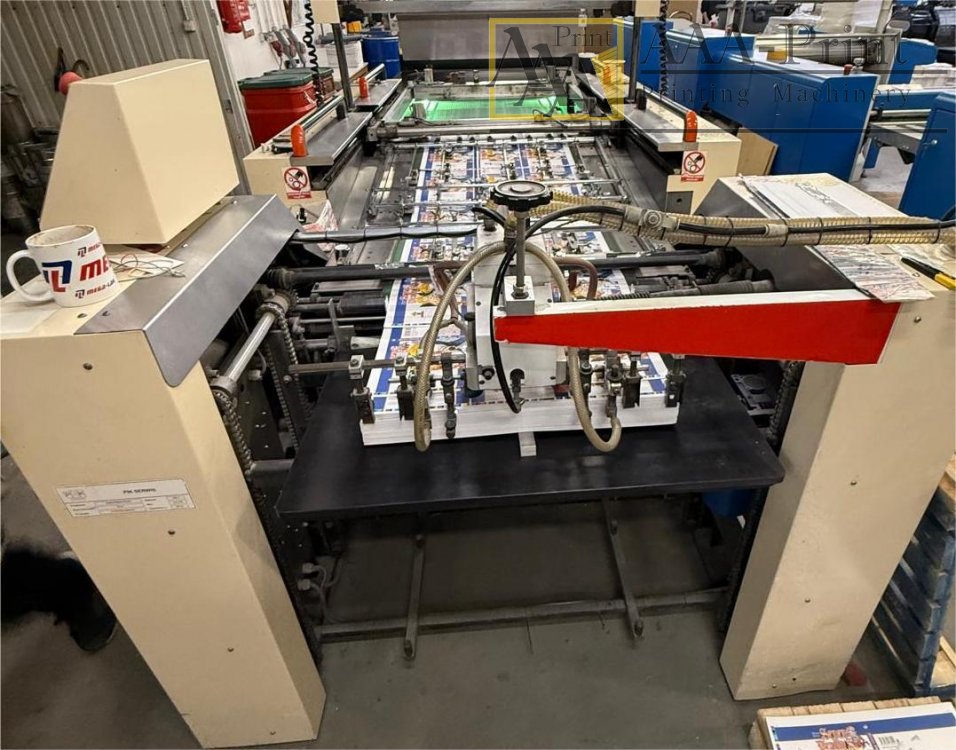

Automatic Screen Printing Machine-High Press PLUS is a fully automatic cylindrical
type alloy cylinder screen printing machine with sheet feeding in a single configuration and
streaming.
Technical data High Press PLUS 720:
Maximum sheet size 740 x 520 mm;
Minimum sheet size 350 x 270 mm;
Maximum print area 740 x 500 mm;
Substrate thickness 0.075-0.8 mm;
Margin on cylinder feet 10 mm;
Power supply 400V 50Hz;
Print speed 800-3000 ark./h;
Operating pressure 6 bar;
Overcurrent protection 32A Type C;
Maximum power consumption 8 kW;
Dimensions:
Length 3100 mm x Width (with platforms) 2400 mm x Height 1500 mm;
Weight 3600 kg;

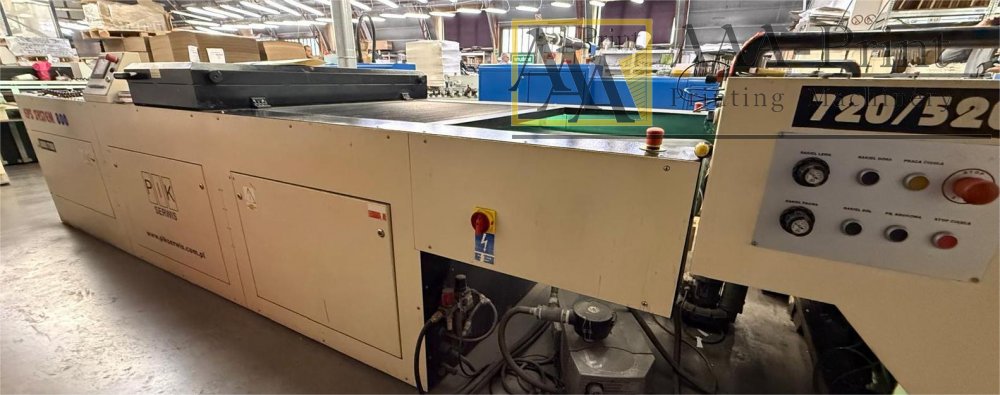

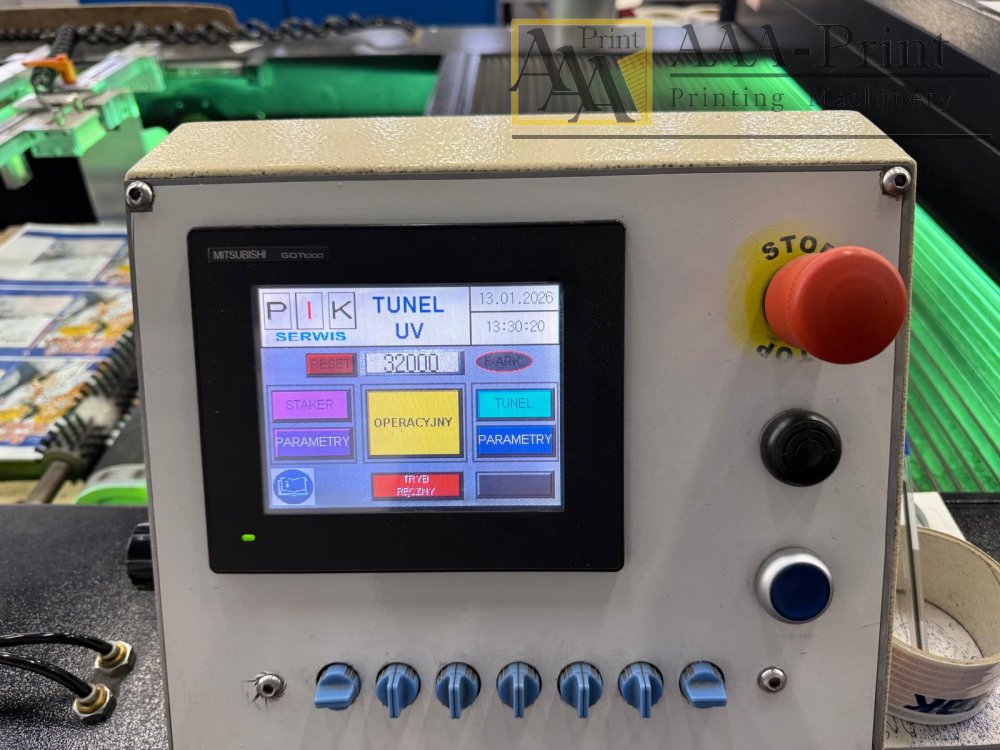

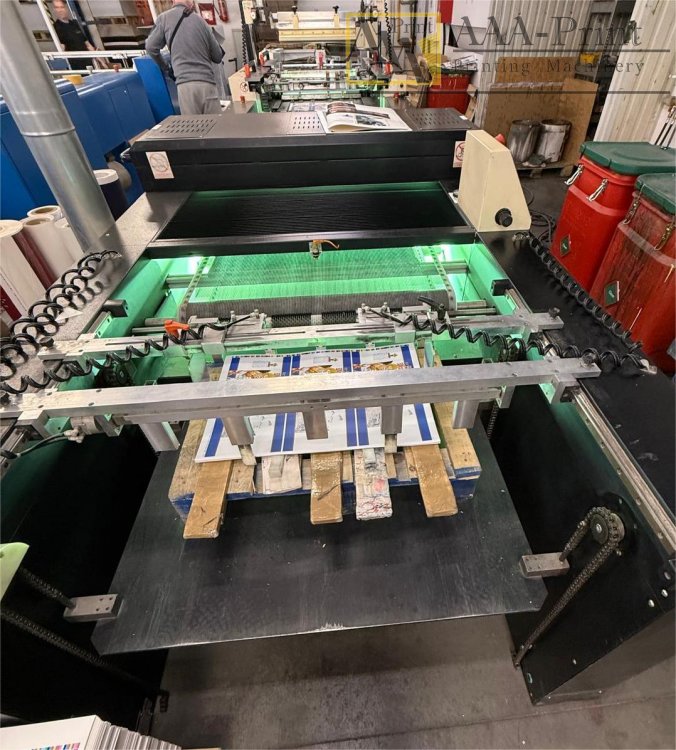

Technical data of EPS Compact System 800 UV tunnel:
Maximum sheet size 780 x 600 mm;
Maximum stack height 800 mm;
Maximum speed of the transporter 45 m / min;
Power supply 400V 50Hz;
Operating pressure 6 bar;
Air demand 4 m3 / h;
5-pin plug 32A;
Overcurrent protection 32A Type C;
Maximum power consumption 17 kW;
Working power 6.5 kW;
Dimensions:
Length 4050 mm x Width 1525 mm x Height 1100 mm
Weight 700 kg;
In production.

Price on request
