• Age: 2005
• Machine type: Thermobinders
• Condition: good
• Availability:

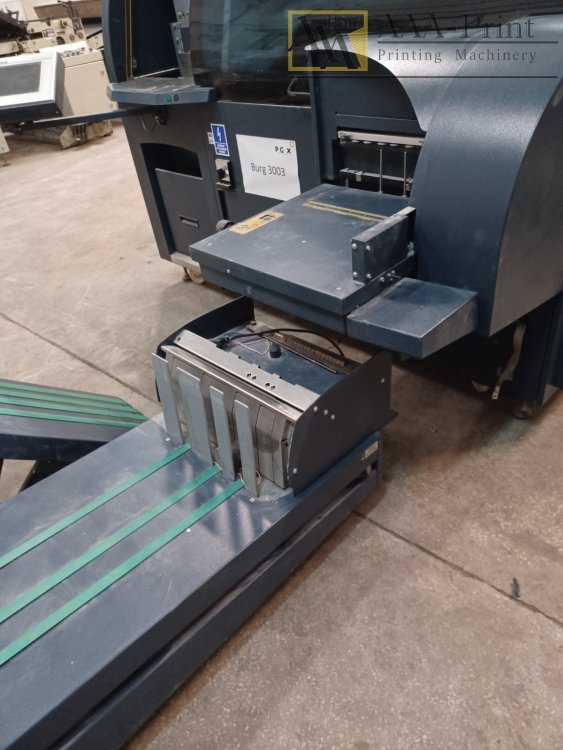

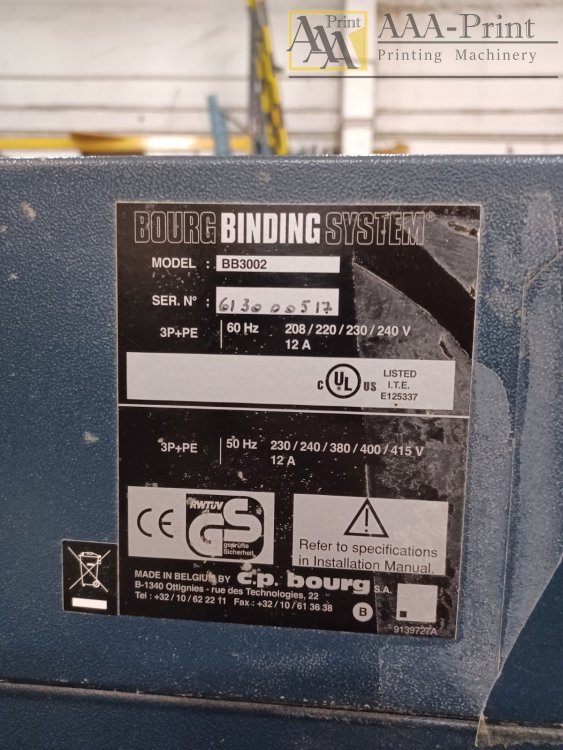

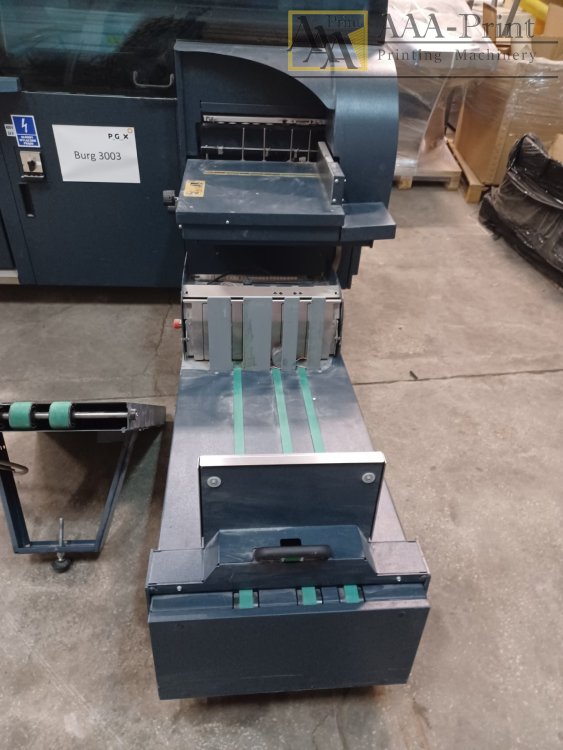

C.P. Bourg BB 3002
designed for the production of book blocks, both from individual sheets and from folded notebooks.
Technical parameters:
Book format: min. 100 x 100 mm - with cover, max. 320x 385 mm;
Block format: min. 60x 90 mm, max. 320x 385 mm;
Conveyor (belt lining of finished products) (WxLxH : 52cm x 125cm x 46cm);
Book thickness: min. 1 mm, max. 60 mm;
Cover format: min. 200 x 100 mm, max. 710 x 395 mm;
Cover weight: max. 80-300 g / m2;
Cover stack height in the automatic feeder: 80 mm;
Capacity: approx. 600 pcs / hour;
Adhesive temperature: min. 140 degrees C, max. 180 deg. C;
Time to prepare for work: (time to heat up the adhesive to 140 degrees C) 25 min.;
Power supply: 3 phases, 380 V;
Power consumption: 4 kW;
Dimensions of the machine with conveyor: (L x W x H) 2.02m x 2.41m x 1.50m .

Price on request
