• Age: 2010
• Max size: 1165 x 950 mm
• Impress count: 649254 cycles
• Machine type: CTP-Systems
• Condition: perfect
• Availability: at once

Thermal Plate Recorder AGFA Avalon N8-60 (Screen PlateRite 8900).

System Overview & Status:
The system is in good condition, currently in production, and can be inspected and tested at any time.
Total plate winding cycles: 649,254.

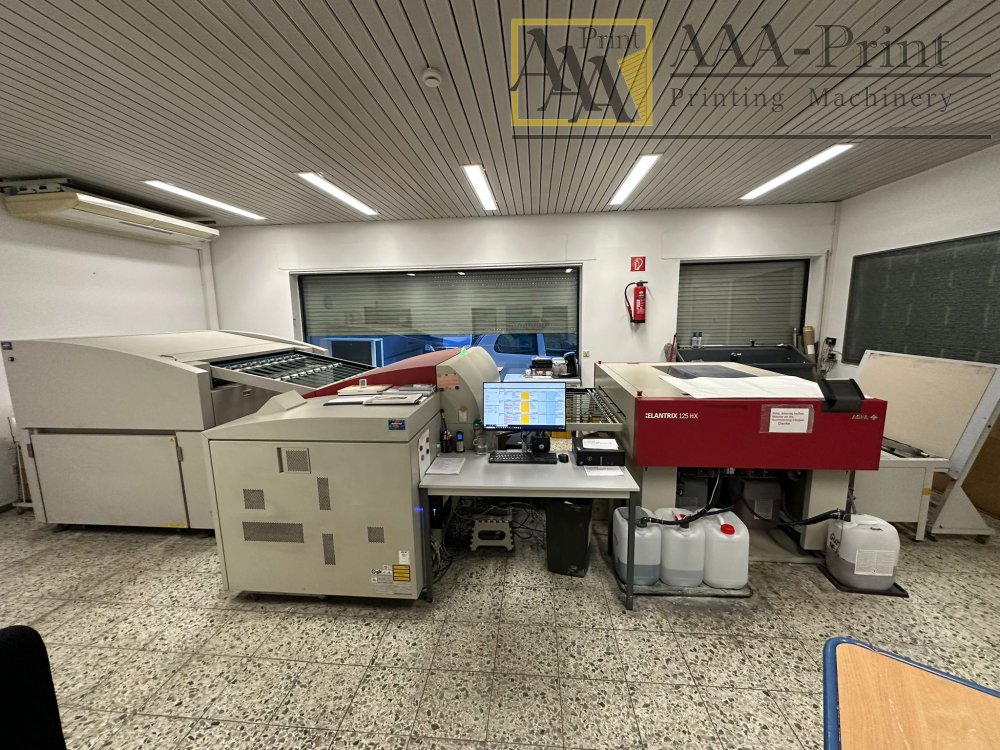

The package includes the CTP recorder, single-cassette autoloader, on-line plate processor, plate stacker, controlling PC, and workflow software.

Technical Specifications:
Model: AGFA Avalon N8-60 S / XT (OEM Screen PlateRite 8900);
Imaging System: Grating Light Valve (GLV) technology;
Laser Technology: 830 nm Thermal Laser Diodes (512 beams);
Recording System: External drum;
Resolution: 2400 dpi (4000 dpi factory option);
Maximum Plate Size: 1165 x 950 mm (45.9 x 37.4 inches);
Minimum Plate Size: 304 x 305 mm (11.9 x 12.0 inches);
Plate Thickness: 0.15 to 0.3 mm (6 to 12 mil), with options for 0.4 mm support;
Maximum Imaging Area: 1165 x 938 mm (45.9 x 36.9 inches) with 6/6 mm grip;

Line Components & Automation:
Autoloader: Single Cassette Autoloader Agfa SA-L8900 (Year of manufacture: 2010). Features automatic slip-sheet removal for unattended operation;
Plate Processor: Agfa Elantrix 125HX / Glunz & Jensen QUARTZ III 125 (Year of manufacture: 2011). Heavy-duty thermal plate processor connected on-line;
Plate Stacker: Advand PST480;

Software & Control:
RIP / Workflow: Agfa Apogee version 13.0.0 (Release date: 06/06/2023);
Control Hardware: Dedicated workstation (Management PC) and all necessary software driving licenses are included in the package.

Still in production.
Very good working condition.

Price on request
