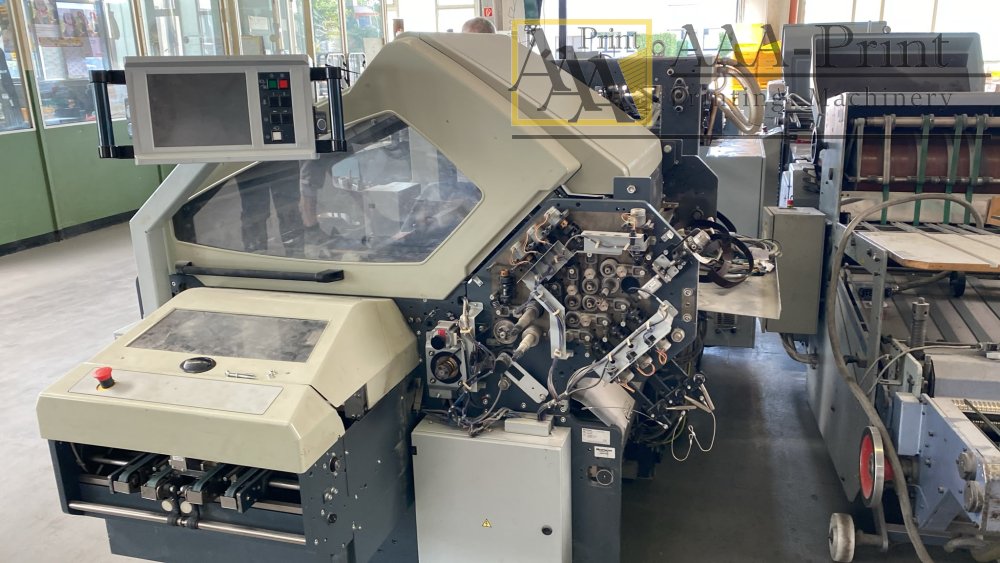

Computerized Cross Folder AFC-746F;
The AFC-74 series B1-format folder is the newest in Horizon's expanding line-up of quality-engineered folders, combining simple operation, quick changeover, high production speed, and superior fold quality.
Machine Structure: 6KTTL (6 Buckles + 1st Fold Knife + 2 Buckles below Knife* + 2nd Fold Knife) (*1 buckle is standard.);
Sheet Size (Width x Length):
Flat Pile Feeder:
Max. 738 x 1,100 mm/ 29.055” x 43.310” Min. 210 x 210 mm/ 8.270” x 8.270”;
Pallet Pile Feeder:
Max. 738 x 1,100 mm/ 29.055” x 43.310” Min. 210 x 297 mm/ 8.270” x 11.695”;
Round Pile Feeder:
Max. 738 x 1,300 mm/ 29.055” x 51.181” Min. 210 x 148 mm/ 8.270” x 5.827”;
Sheet Weight Range:
Normal Paper 35 to 209 gsm;
Art/Coated Paper 50 to 232 gsm;
Belt Speed:
30 to 240 meters (99 to 787 feet) per minute;
Knife Fold 240 meters (787 feet) per minute;
System Configuration:
Pallet Feeder;
Sheet transportation;
Folding Rollers;
1st Knife Fold section;
Touch panel display;
2nd Knife fold section;
Delivery conveyor;
The machine is complete and in working condition.
Dismantled, in a warehouse.
