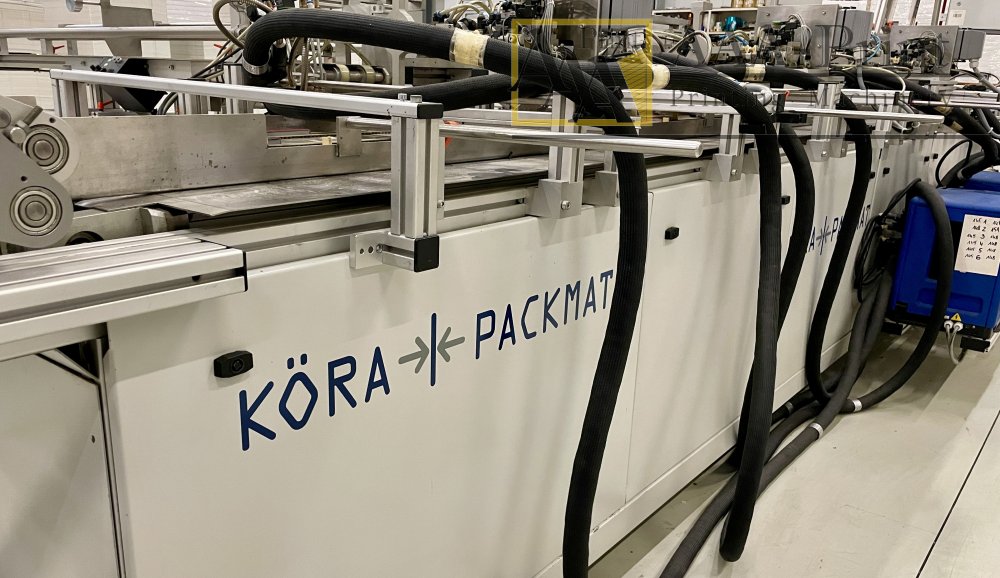

The KÖRA-Packmat machine for DIGIPACKS with a hot gluing system.
Manufacturer: köra packmat, Germany.
Hot gluing system: Meler Micron 8 // Meler Micron 4;
Initially, the machine was used to insert plastic CD/DVD trays in a digipack, that is, cardboard packaging for CD/DVD.
The greatest value of the machine is the complete hot glue application system and the design that allows it to be used in other production applications.
Possible applications after adaptation:
- gluing of plastic elements to cardboard,
- pasting inserts, trays, inserts or spacers into packages,
- production of premium and rigid box packaging,
- gluing elements to boxes, folders, displays or POS materials,
- bookbinding and printing applications,
- gluing of advertising elements,
- bonding of components in series production,
- other processes requiring precise application of hot-melt adhesive.
Equipment:
-complete gluing system hot-melt Meler Micron 8,
-complete gluing system hot-melt Meler Micron 4,
- 8 glue applicators,
- adhesive feeding system,
- machine design made for automatic gluing process,
- Köra-Packmat LHP Servo Friction Feeder, load flat products into the magazine, adjust the side guides and air gap using micrometer screws, set the speed and run parameters on the control panel, and trigger the servo feed via the PLC interface or light barrier.
- The Köra-Packmat PPR Pick & Place Anleger is a special four-head vacuum feeder with a rotary principle of operation, the stars of which are located at an angle of 90°. It is designed for horizontal and vertical feeding, as well as precise positioning of delicate and three-dimensional (3D) products.
- Köra-Packmat Dispensing and gluing system is an automated system for the precise separation, gluing or gluing of flat products such as samples, sachets or cards onto carrier materials such as magazines and brochures.

The machine can be especially useful where you need to quickly and repeatedly glue cardboard, plastic, or mixed elements.
Can be seen in production.
In very good working condition.
