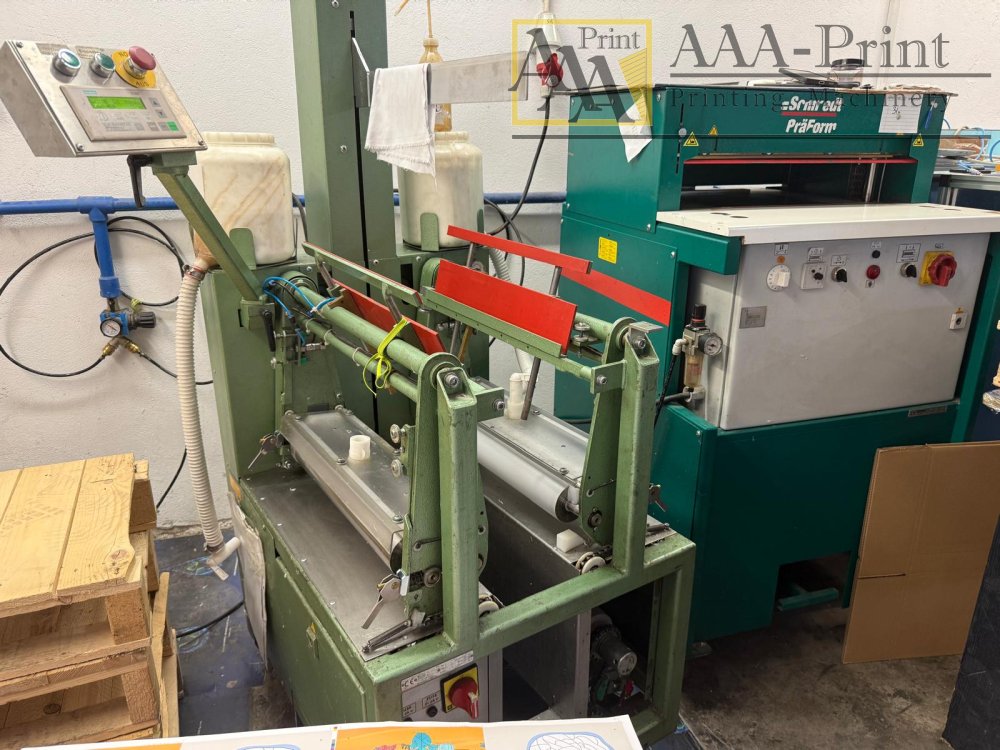

Set of 2 Schmedt machines.
Specification:
1. The Schmedt PräLeg is a machine used to hang blocks in a hard frame, suitable for both series and single production.
Type: 1815, year 2001;
PräLeg-for suspension:
Technical data:
Block height 80 to 440 mm;
Block width 110 to 450 mm;
Block thickness 2 to 80 mm;
Productivity with a single production of 100-150 PCs./h;
Adjustable downforce: 6 – 40kn;
Weight: 380kg;
Power supply: 230V/50HZ / 0.9 kW;
Compressed air: 6 bar;

2. The Schmedt PräForm machine is used to press books after they have been suspended in a hardcover, while burning the groove.
Type 21-00, year 2011;
PräForm-press for firing grooves.
Technical data:
Cover height 100-520 mm;
Cover width 120-450 mm;
Cover thickness 6.5- 100 mm;
Capacity: 250 rpm;
Dimensions (Hight. x Width x depth) 128 x 73 x 77 cm;
Weight: 220kg;
Power supply/power consumption: 230 V/2 kW;
Compressed air connection: 6 bar / 54 l / h;
In production.
